Type

JY868G

Reed space (CM )

150.170190 210.230 260 280 300 320 340 360. ( cm)

Useful reed space (CM )

5OCM Nominal FVS minus 2cm to 50cm

Frame

B Ox frame type Driving section is in an oil bath

Doving

Brake

Direct stop mechanism by an electromagnetic brake

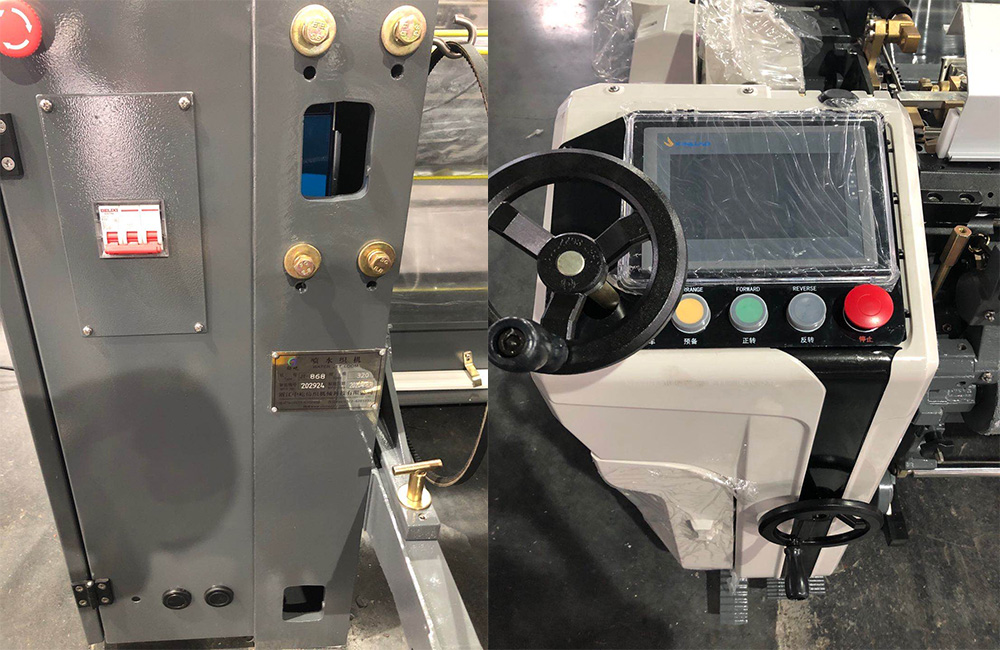

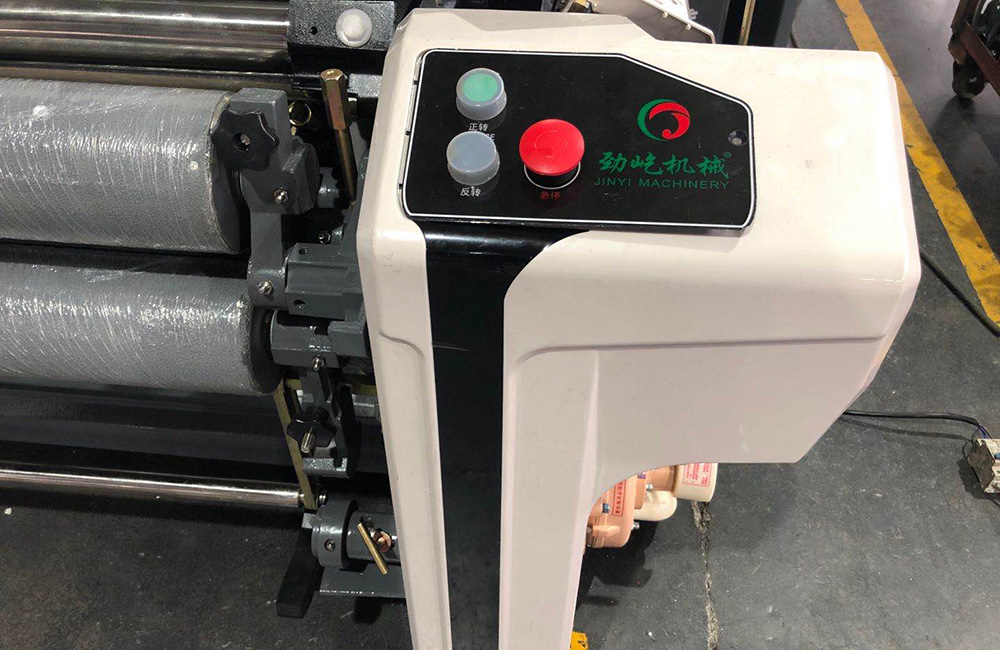

Contn>l

Push and rim one step reverse)

Motor

Rush start motor

Motor capacity

1.5KW, 1 8Kw, 2.2KW, 2.7KW, 3.2Kw, 3.7kw, 4.5Kw, 5.4KW

Beating

Crank beating

Let-off

system

Automatic mechanical and continuous let- off or electronic let-off One or vertical two roll

Warp beam

c800MMFIange e 178MMbarrel

Take-up

System

Mechanical or electronic continuous take-up

Pick density

Wcm Normal 5-60picks/cm Special： 4-100picks/cm

Cloth wind-updiameter

C 420mm c 520mm c 600mm

Shedding

Piain sheddin

Crankshedding(heald frame number:(2to8) 1/1 fabric

Cam shedding

Cam shedding (heald frame number： 2-14)plain,twill,satin fabric

SDobby shedding

Positive .negative heald frame number 16(max(.electronic and mechanical reading system,plain.twill.satin or complex design

dacquard

1408 2688 5120 Utting hooks electronic jacquard device

Weftlnsertion

Measuring& storage

300RDPtype mechanical measuring Turbo btower(single nozzle)or electronic weft feeder (1-6nozzles)

Pump

Type: M.L.H .single or double

Piston of pump

e32/ C17, C32/ C18, C32/C 20, C36/ C22. C36/ C24, e36/ C26, e39/ e26, C39/ C28, C39/ e30, 6 50/ c35Ceramicpioton

Nozzle needle

ST20/10.ST 30/10.ST 45/20.SD 75/40

Weft filling

one ,twojhree,four,nozzle

Filling feeler

Electronic,opticaLand self-control.

Selvage

Twisting by star planetary gears

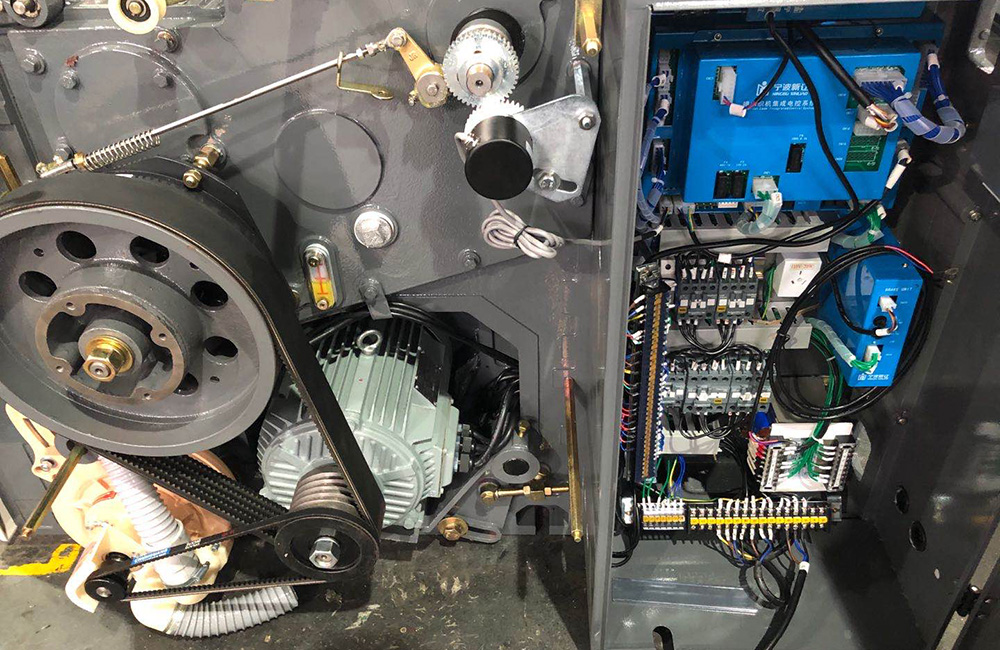

ElectricaPart

Made in China Import

Main control board.AC contactor,translonmer, NC interlace, selvage break system,waste yam break system.overheatingand overload protection

Electronic meter

Count and display rotational speed total yleid.team yield .total efficiency, team efficiency Cloth length auto control.Stopping analysis and display

RSOtherdevices

Acloth roller,a weft density gear.atrashcan, a setfo nozzle noedle
