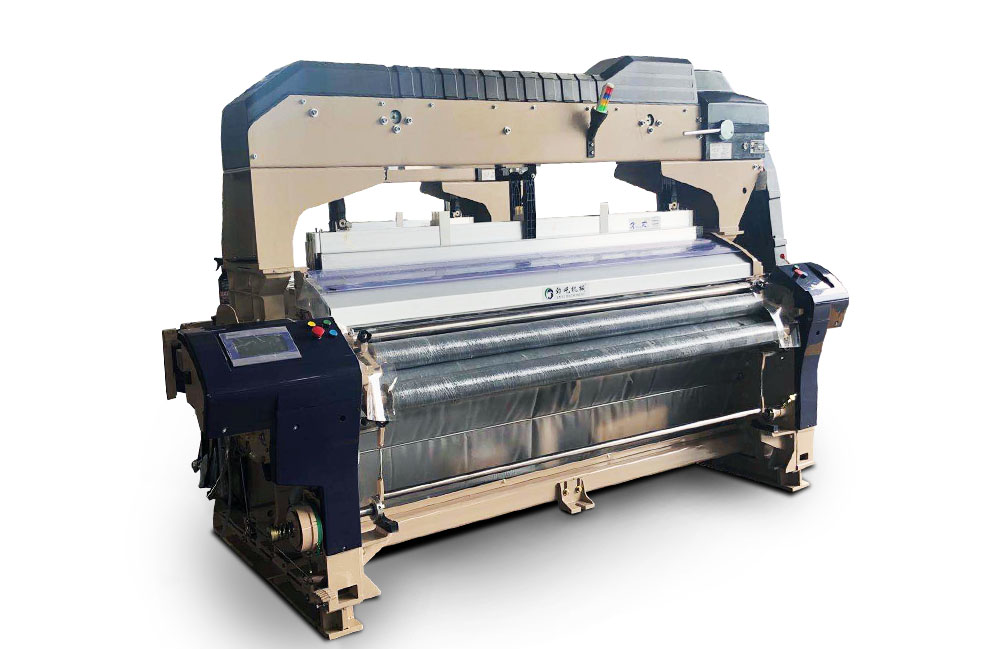

Type

JY810—2

Reed space (CM)

150.170 190 210.230 260 280 300 320 340 360. (cm)

Useful reed space (CM)

Nominal R/S minus 2cm to 50cm

Frame

B Ox frame type Driving section is in an oil bath)

Doving

Brake

Direct stop mechanism by an electromagnetic brake

Control

Push and touch button (Artange run stop forward Inching traverse inching one step reverse)

Motor

Rush start motor

Motor capacity

1.5KW, 1 8Kw, 2.2KW, 2.7KW, 3.2Kw, 3.7kw, 4.5Kw, 5.4KW

Beating

Crank beating

Let-off

system

Automatic mechanical and continuous let- off or electronic let-off One or vertical two roll

Warp beam

800MMFIange c 178MMbarrel

Take-up

System

Mechanical or electronic continuous take-up

Pick density

Normal 5-60picks/cm Special： 4-l00plcks/cm

Cloth wind-updiameter

c 420mm c 520mm c 600mm

Shedding

Plain sheddin

Crankshedding(heald frame number(2to8) 1/lfabrlc

Cam shedding

Cam shedding (heald frame number： 2-14)plain,twill,satin fabric

Dobby shedding

Positive .negative heald frame numberI6(max(,electronic and mechanical reading system.plaln.twlll,satin or complex design

dacquard

1408 2688 5120 lifting hooks electronic jacquard device

Weftinsertion

Measuring storage

300RDPtype mechanical measuring Turbo btower(singie nozzJe)or electronic weft feeder (1-6nozzles)

Pump

Type: M.L.H .single or double

SPiston of pump

C32/ C17, C32/ C18. C32/C 20, <5 36/C22, C36/ C24. c36/ C26, C39/C26. e39/c28, C39/ $30, c50/ c35.，Ceramicpioton

Nozzle needle

ST20/10.ST 30/10,ST 45/20.SD 75/40

Weft filling

one ,two,three,four,nozzle

Filling feeler

Electronic,optical,and self-control.

Selvage

Twisting by star planetary gears

ElectrlcaPart

Made in China Import

Main control board,AC contactor.translonmer.NC interlace, selvage break system.waste yam break system,overheatingand overload protection

Electronic meter

Count and display rotational speed total yleki.team yield .total efficiency, team efficiency Cloth length auto control.Stopping analysis and display

fit Otherdevlces

Acloth rollerq weft density gear.atrashcan, a setfo nozzle noedle
