Type

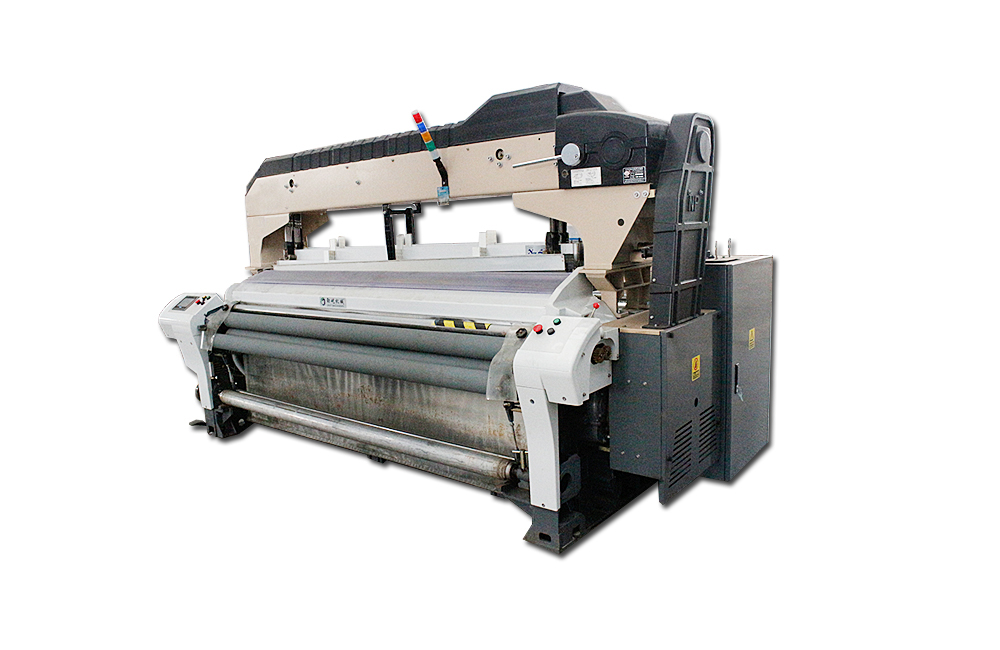

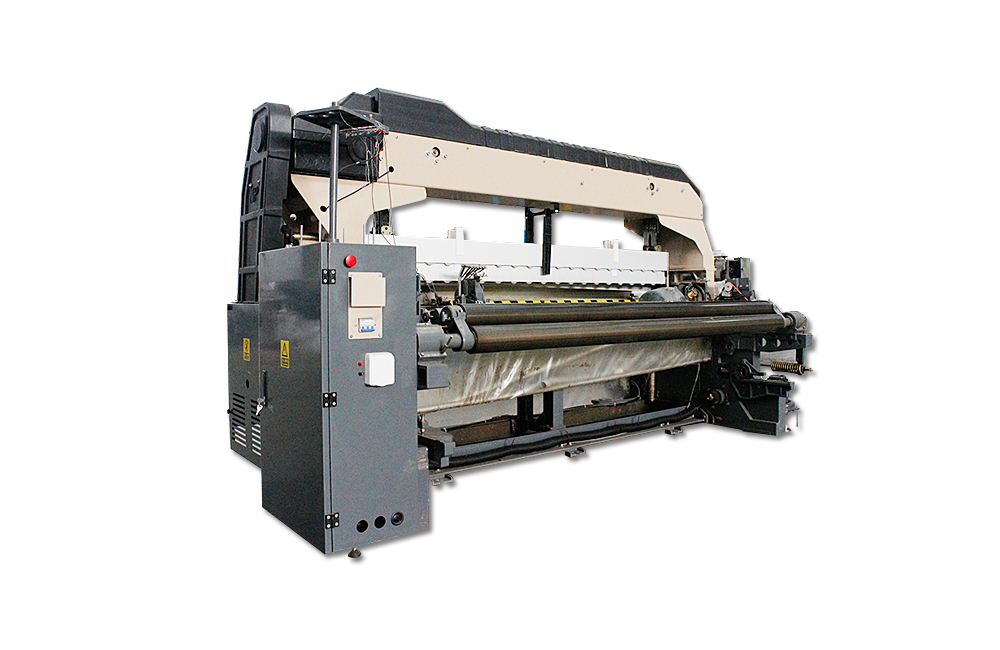

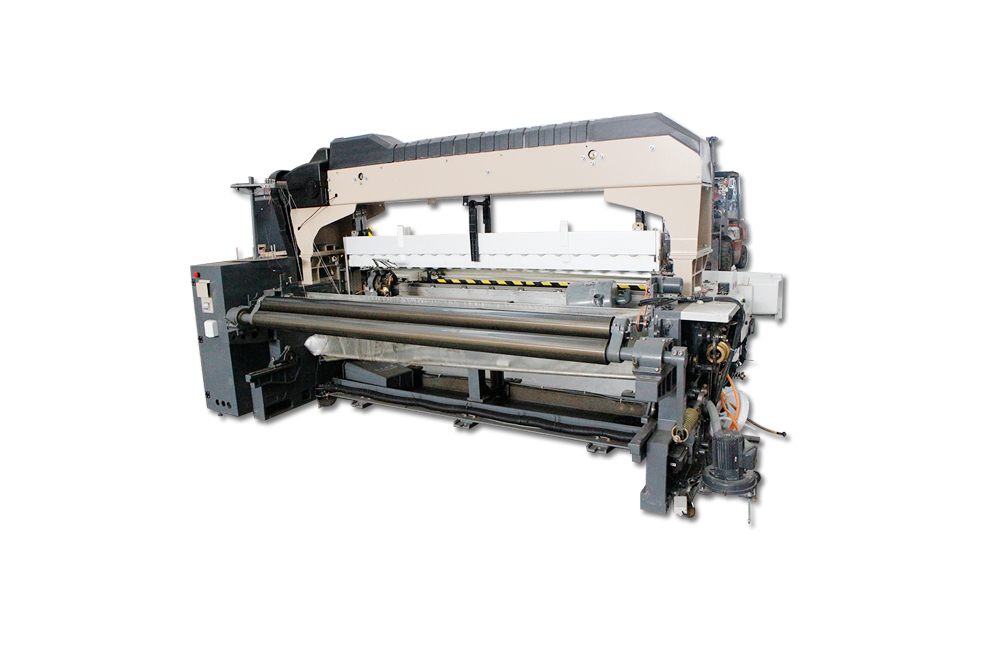

JY871

Reed space

150.170 190 210.230 260 280 300 320 340 360.(cm)

Useful reed space

Nominal r/s minus 2cm to 50cm

Frame

B ox frame type driving section is in an oil bath

doving

Brake

Direct stop mechanism by an electromagnetic brake

Control

Push and touch button(artange run stop forward inching traverse inching one step reverse

Motor

Rush start motor

Motor capacity

1.5kw,1.8kw,2.2kw,2.7kw,3.2kw,3.7kw,4.5kw,5.4kw

Beating

Crank beating

Let-off

System

Automatic mechanical and continuous let-off or electronic let-off one or vertical two roll

Warp beam

800MMFlange 178MMbarrel

Take-up

System

Mechanical or electronic continuous take-up

Pick density

Normal 5-60picks/cm special:4-100picks/cm

Cloth wind-updiameter

420mm 520mm 600mm

shedding

Piain sheddin

Crankshedding(heald frame number:(2to8)1/1fabric

Cam shedding

Carn shedding(heald frame number:2-14)plain,twill,satin fabric

Dobby shedding

Positive.negative heald frame number:16(max(,electronic and mechanical reading system,plain,twill,stain or complex design

Dacquard

1408 2688 5120litting hooks electronic jacquard device

Weftlnsertion

Measuring&storage

300RDPtype mechancial measuring turbo btower(singie nozzle)or electronic weft feeder(1-6nozzles)

Pump

Type :M,L,H,single or double

Piston of pump

Ceramic pioton

Nozzle needle

ST20/10,ST30/10,ST45/20,SD75/40

Weft filling

One,two,three,four,nozzle

Filling feeler

Electronic,optical,and self-control

selvage

Twisting by star planetary gears

Electronicpart

Made in china lmport

Main control board,AC contactor,translonmer,NC intertace,selvage break system,waste yarn break system,overheatingand overload protection

Electronic meter

Count and display rotational speed total yleid,team yield,total eddiciency,team efficiency cloth length auto control,stopping analysis and display

Otherdevices

Acloth roller,a weft density gear,atrashcan,a set fo nozzle noedle
